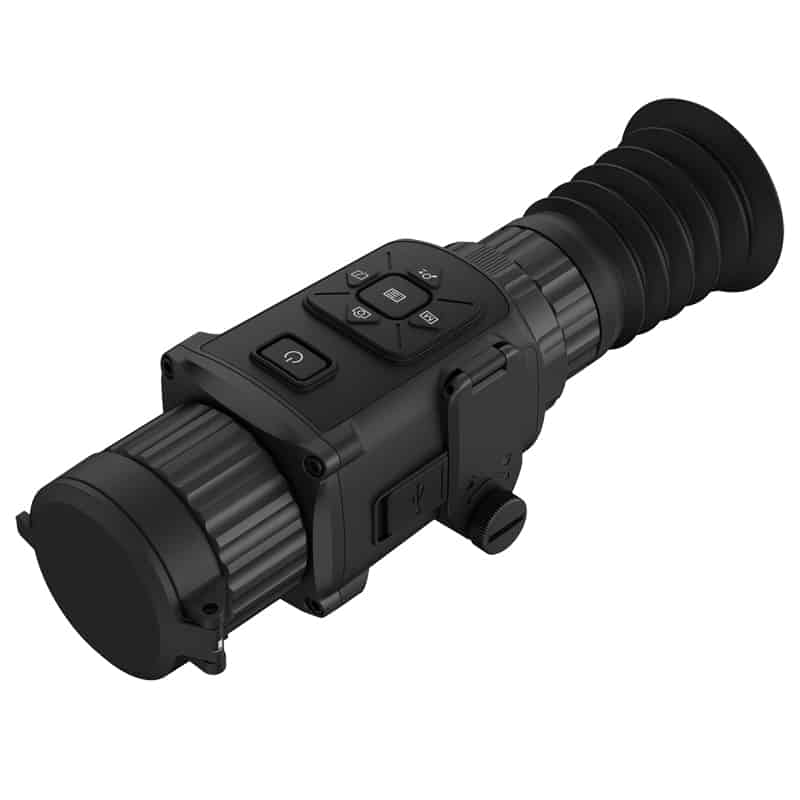

HIKMicro Thunder 2.0 19mm (256×192) Thermal Module and Riflescope

HIKMICRO Thunder 2.0 19mm (256×192) Thermal Module and Riflescope Picatinny Rail. The all new Thunder 2.0 from HIKMICRO builds on the success of the original Thunder with an updated, ergonomic design and price point that makes thermal riflescopes affordable to a much wider group of shooters.

The Thunder 2.0 chassis has been completely redesigned from the ground up and incorporates many new features including the removable HIKMICRO Li-ion battery pack which delivers more than 10 hours of runtime and can be conveniently recharged away from the gun.

Fitted with HIKMICRO’s 256px, SUB 35mK NETD sensor the Thunder 2.0 is able to detect small temperature differences, allowing it to build a detailed image of your surroundings showing you any nearby heat sources and their surroundings.  Optimized for air rifle and rimfire shooters the Thunder 2.0 provides and affordable entry level into hunting with thermal without having to compromise on the quality.

The Thunder 2.0 is loaded with HIKMICRO’s powerful software to boost your hunting experience – including one shot zero, picture in picture, recoil activated recording and access to the HIKMICRO Sight app which allow you to stream and control your scope from your phone.

Features

• 256 × 192 resolution with 12 μm sensor
• 1024 × 768 resolution 0.39-inch OLED display
• Supports image brightness and tone adjustment
• Up to 10 hours of continuous operation
• Replaceable and rechargeable Li-ion battery
• Supports audio and recoil-activated recording
• High shock resistance up to 1000 g/0.4 ms

Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• NETD: less than 35 mK (25°C, F# = 1.0)
• Lens (Focal Length): 19 mm
• Focus Knob: No
• Detection Range: 1000 m
• Min. Focusing Distance: 0.5 m
• Aperture: F1.0
• Magnification: 2.47 ×
• Field of View(H × V), Degrees/m @100 m: 9.24° × 6.94°/16.17 m × 12.13 m

Image display

• Display: 1024 × 768, 0.39 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field: Auto, Manual, External Correction Correction) Mode
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5 D to 5 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm

System

• Record Video: On-board video recording
• Capture Snapshot: Yes
• Digital Zoom: 1x, 2x, 4x, 8x
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Recoil-activation Recording: Yes
• Audio Recording: Yes
• Max. Recoil: 1000 g/0.4 ms

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 10 h (25°C, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 A, Supports external power supply

General

• Protection Level: IP67
• Dimension: 218.7 mm × 67.14 mm × 68.04 mm
• Weight: 476 g without battery
• Working Temperature: -30°C to +55°C (-22°F to 131°F)
